The initial cnfiguration starts at 4 lines in X 8 digital station ports x 2 analog station ports. The maximum configuration as a sinle box system is 12 lines in x 24 phones -plus 2 analog station ports. With an expansion box added the STS can expand to 24 lines in x 48 phones plus 4 analog station ports.

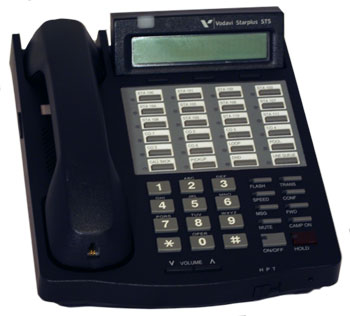

As pictured above. Features include: 24 programmable feature buttons, speed dials, an affordable 2.5 MM headset jack feature, 2 line caller ID LCD display, Voice Mail message waiting light, call conferencing, hold button.
Most comon expansion cards are as follows:
Optional In-skin voice mail card installs directly in to the basic KSU, configured at 8-port physical connections X 3 hours voice mail storage X 64 mailboxes. The Vodavi In-skin Voice Mail also features: Answering Machine Emulation, Automated Attendant with menu routing, Dial by Name, Fax Tone Detection, Pager Notification, Remote Access to Voice mail Messages.
We have the latest model Dect 6.0 cordless phone available for the Vodavi STS although the system it is going to be connected to will require the 2.0 version firmware. The STS Dect 6.0 cordless provides most of the same features as the desk phones with the capability of mobility.
EZ Call transfer of calls to associates and unavailable associates voice mail. With the touch of 2 buttons your phone attendant can have a call into an unavailable associates voicemail in seconds. Save time and money in this instance a phone system can pay for its self in 6 to 9 months.
Give us 2 minutes of your time. Our knowledgeable sales reps are standing by to take your phone call with technicians on call to answer any technical questions you may have. Please call any time as we would always be glad to hear from you.
Wiring in a Vodavi is actually very easy when it comes right down to it. For the Do-It Your-Selfer all is needed is a little lnowledge of phone wiring as all the phones and incoming lines connect to the system with one pair of wires.
The STS and the STSE have the ability to host a music on hold system. The MOH system connectes to the violet wires on the CO champ connection on the STS control unit.
